Products

“MILLION TAPES” ARE MANUFACTURED TO WITHSTAND RUGGED USE AND RESIST TEAR, YEAR AFTER YEAR, EVEN UNDER ROUGH HANDLING AND EXTREME WHETHER CONDITIONS AND TEMPERATURES.
#SUPERIOR DURABILITY #HIGH ACCURACY #HIGH VISIBILITY #NON-CONDUCTIVE #GOOD DESIGNED REEL/CASE
#WEATHER RESISTANT #EASY TO CLEAN

Features

• STRENGTH is assured through an inner core of extreme tough Glass Fiber and an overlay of protective Poly Vinyl Chloride. The tape breaking point is more than 2,000N.
• ACCURACY is almost comparable with that of conventional steel measuring tapes. The tolerance on MILLION TAPE: within +-5mm in 30 meters long.
• LEGIBILITY is excellent as all marking are printed with ultraviolet-fixation permeating ink. Thereby, the markings are hardly come off for years of use.
• NON-CONDUCTIVE tape blade is made of two non-conductive materials which render the tape absolutely safe from hazards. The tape has a proven dielectric strength of 200,000 V/m.
• DESIGN, through long experiences in our own field, makes the MILLION TAPES series a wise choice for you.

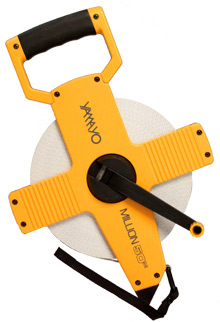

MILLION OPEN REEL
PVC coated fiberglass tape in ABS Open Reel.
#width:12.5mm #Thick:0.45mm #Tension:20N

Descriptions : Metric/Metric on both sides

Cat. Nos.	Lengths
OTR30	30m
OTR50	50m
OTR100	100m

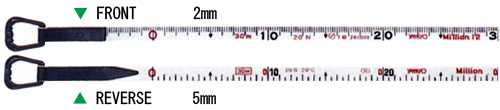

DUAL MARKINGS

Type of graduation : 2/EC5
#MARKING SPECIFICATIONS
*Type of graduation : 2/EC5
*Descriptions : Metric/Metric on both sides
*Graduations :

Million Custom

PVC coated fiberglass tape in ABS Case.
#width:12.5mm #Thick:0.45mm #Tension:20N

Cat. Nos.	Lengths
MCT10	10m
MCT20	20m

#The following EEC standard tape is also available.
*Type of graduation : EC2
*Metric only on one side(2mm)
*Graduations :
